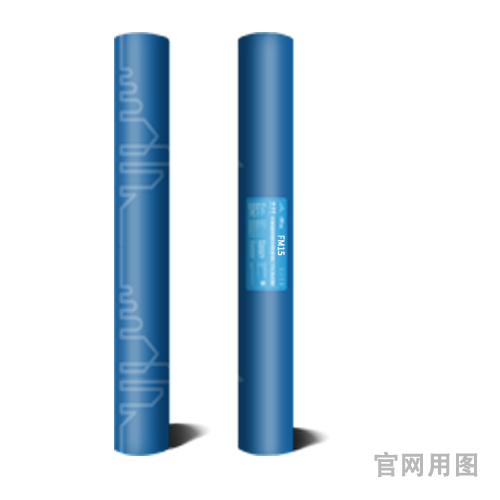

Polyeco? HP Waterproofing Membrane (FM15)

BBÊÓѶ¡¤(ÖйúÓÎ)ÓÐÏÞ¹«Ë¾
BBÊÓѶ¡¤(ÖйúÓÎ)ÓÐÏÞ¹«Ë¾

Product specifications

Model
Thickness£¨mm£©
Wide£¨m£©
Length£¨m£©
Lap edges
Execution standards
Type P (fabric reinforced)
1.5
2.0
20
weld

GB27789-2011


Product features

1. High-quality imported low-carbon and environmentally friendly polymer raw materials and weather-resistant improved formulas;

2. No chlorine components, no open flame construction, no smoke emission, green environmental protection;

3. Excellent weather resistance, UV resistance, aging resistance far beyond the national standard, to meet the ¡Ý 5000H testing requirements;

4. Excellent physical properties, tensile and tear strength;

5. Strong wind resistance, hail resistance and fire resistance;

6. High sunlight reflectivity, effectively reduce roof temperature, energy saving and emission reduction.

Technical indicators

Executive standard: GB27789-2011 "Thermoplastic polyolefin TPO waterproofing membrane"

Serial number

project

index

H

P

1

The thickness of the resin layer on the intermediate tire base/mm¡Ý

-

0.40

2

Tensile properties

Maximum pull/(N/cm) ¡Ý

-

250

Tensile strength/MPa ¡Ý

12.0

-

Elongation at maximum pull/% ¡Ý

-

15

Elongation at break/% ¡Ý

500

-

3

Low temperature bending

-40¡æÎÞÁÑÎÆ

4

Seam peel strength/(N/mm) ¡Ý

4.0»ò¾í²ÄÆÆËð

3.0

5

Right angle tear strength/(N/mm) ¡Ý

60

-

6

Artificial climate accelerates aging

Time/h

5000ÒÔÉÏ

Appearance

No blistering, cracks, delamination, bonding and holes

Maximum pull retention/%¡Ý

-

90

Tensile strength retention/%¡Ý

90

-

Elongation retention at maximum pull/%¡Ý

-

90

Elongation at break retention/%¡Ý

90

-

Low temperature bending

-40¡ãC without cracks



Construction steps

Mechanical fixation method: base layer cleaning ¡ú laying air insulation layer ¡ú laying insulation board ¡ú pre-laying coil ¡ú fixed coil ¡ú lap treatment ¡ú node strengthening ¡ú self-inspection and acceptance

Full adhesion method: base layer cleaning ¡ú pre-laid coil ¡ú large surface gluing ¡ú laying coil ¡ú lap treatment ¡ú node strengthening ¡ú closing treatment ¡ú self-inspection and receipt

Empty topping method: base layer cleaning ¡ú pre-laid coil ¡ú lap treatment ¡ú node reinforcement ¡ú self-inspection ¡ú cover the topping
